Wearable sensors + SDK for high-fidelity human movement data. Attach, stream, classify, build.
Use React Native 0.77 with Hermes. From the app directory, install the supplied tarball and its peer dependencies, then rebuild for your device.
npm install ./kaitag-sdk-0.2.0.tgz
# iOS only
(cd ios && pod install)Enable Bluetooth, grant the app Bluetooth access, and turn on one unpaired left-arm tag. Call capture() from a button on your phone, then throw a punch within 15 seconds.
import { Base, Combat, TagManager,
SensorPosition } from '@kaitag/sdk';
export async function capture() {
const tags = TagManager.getInstance();
await tags.initialize();
await tags.scan();
const devices = tags.getDevices();
if (devices.length !== 1) {
throw Error('Use one available arm sensor');
}
const { id } = devices[0];
await tags.connect(id);
await tags.pair(id);
await tags.setSensorPosition(
id, SensorPosition.LeftArm
);
const combat = new Combat(new Base());
const off = combat.onStrike(event => {
console.log(event.label, event.position);
});
try {
await combat.start();
await new Promise(r => setTimeout(r, 15000));
} finally {
try { await combat.stop(); } finally { off(); }
}
}Look in the app console for a strike label and arm position. Without a classifier the label is unclassified.
Store up to 8 hours of sensor data on-device. No phone or computer connection required.
6-axis IMU with AI Motion Intelligence Engine. Sampling rates up to 17 kHz capture impacts, vibration, and fast motion events.
Sealed enclosure rated for underwater use. Collect motion data in pools, lakes, and the ocean.

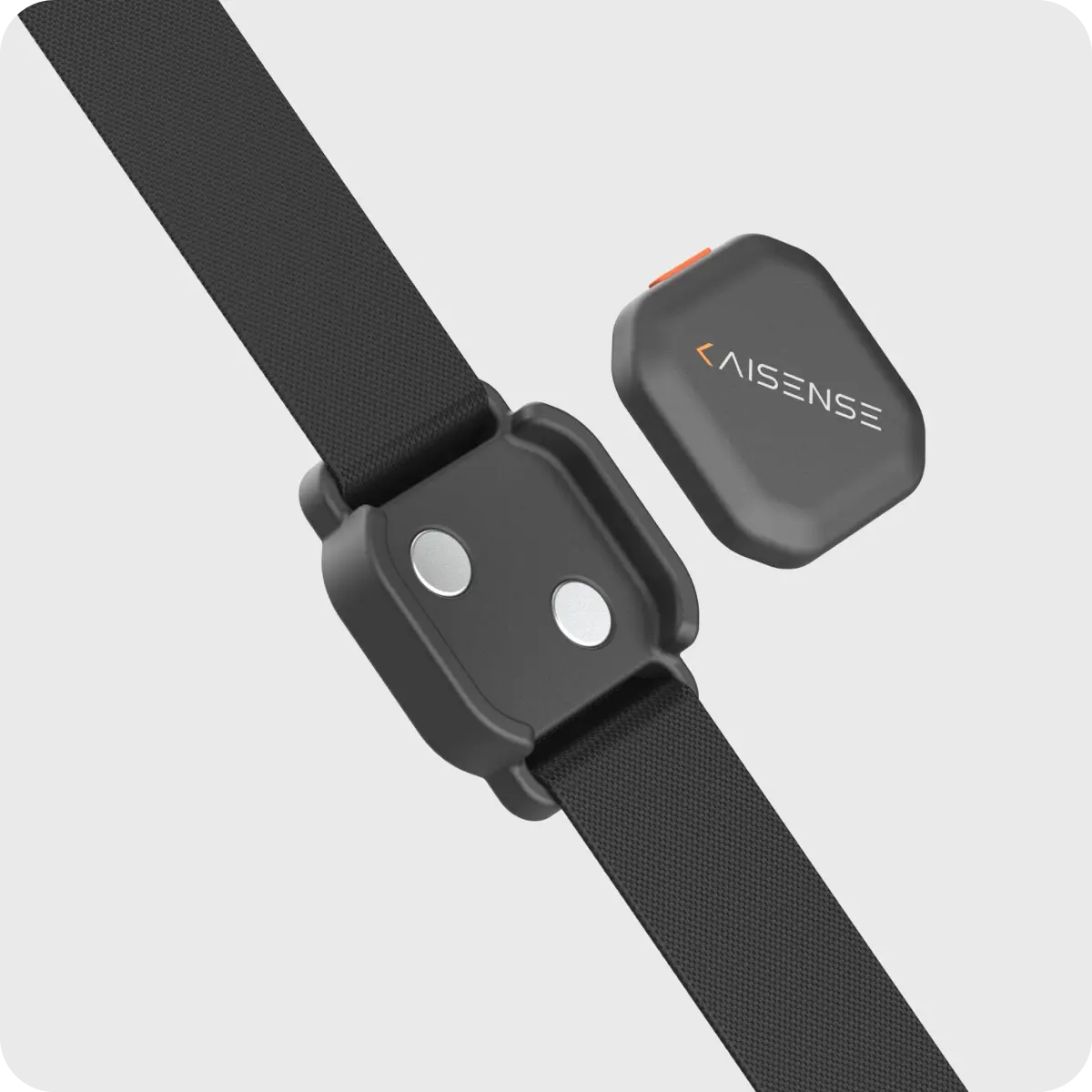

Each magnet serves three functions:
Up to 4 hours of continuous data streaming. 24 hours+ in battery-saving mode.
64 MHz Arm® Cortex®-M4F wireless SoC with Bluetooth Low Energy (BLE).
100+ custom vibration patterns for instant tactile feedback.

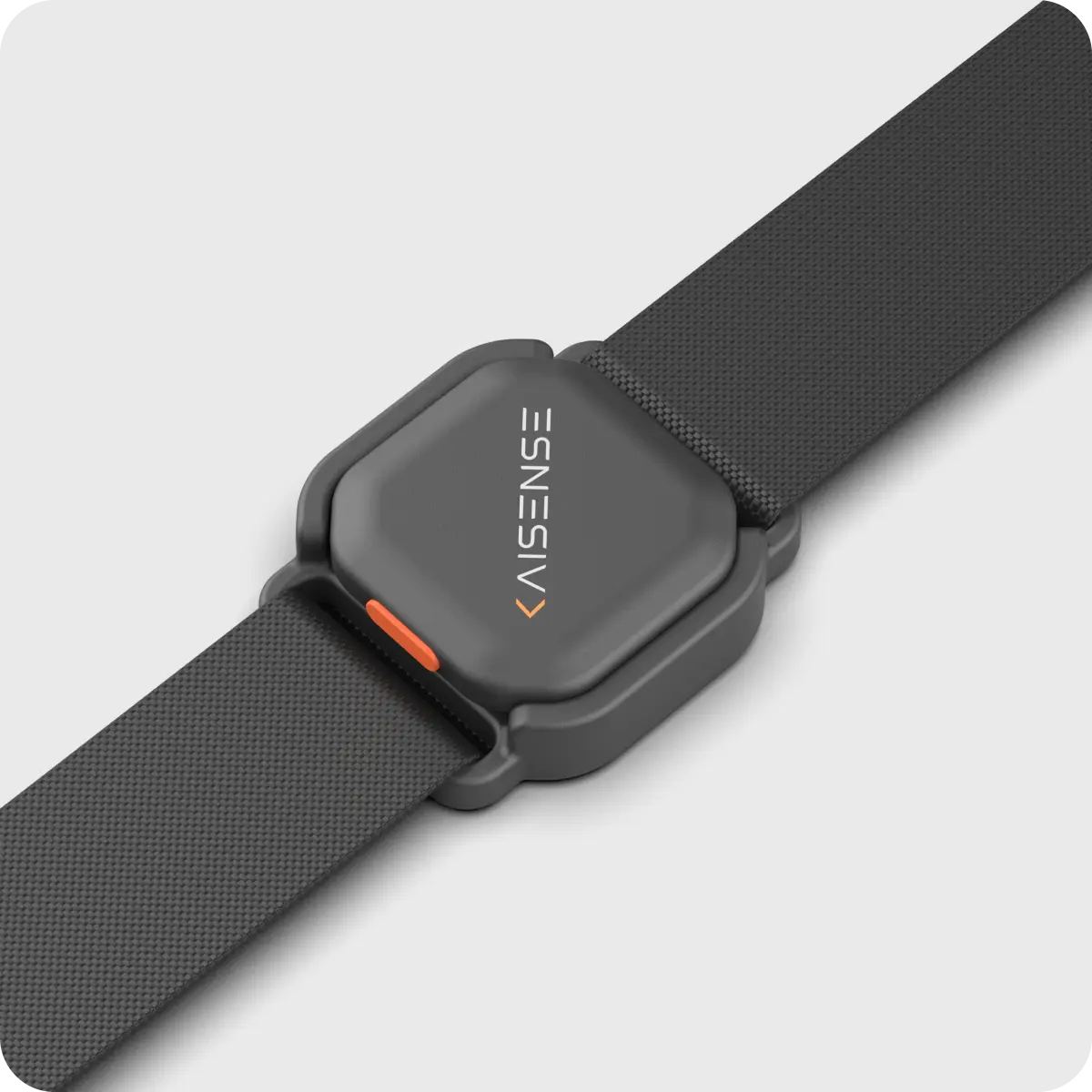

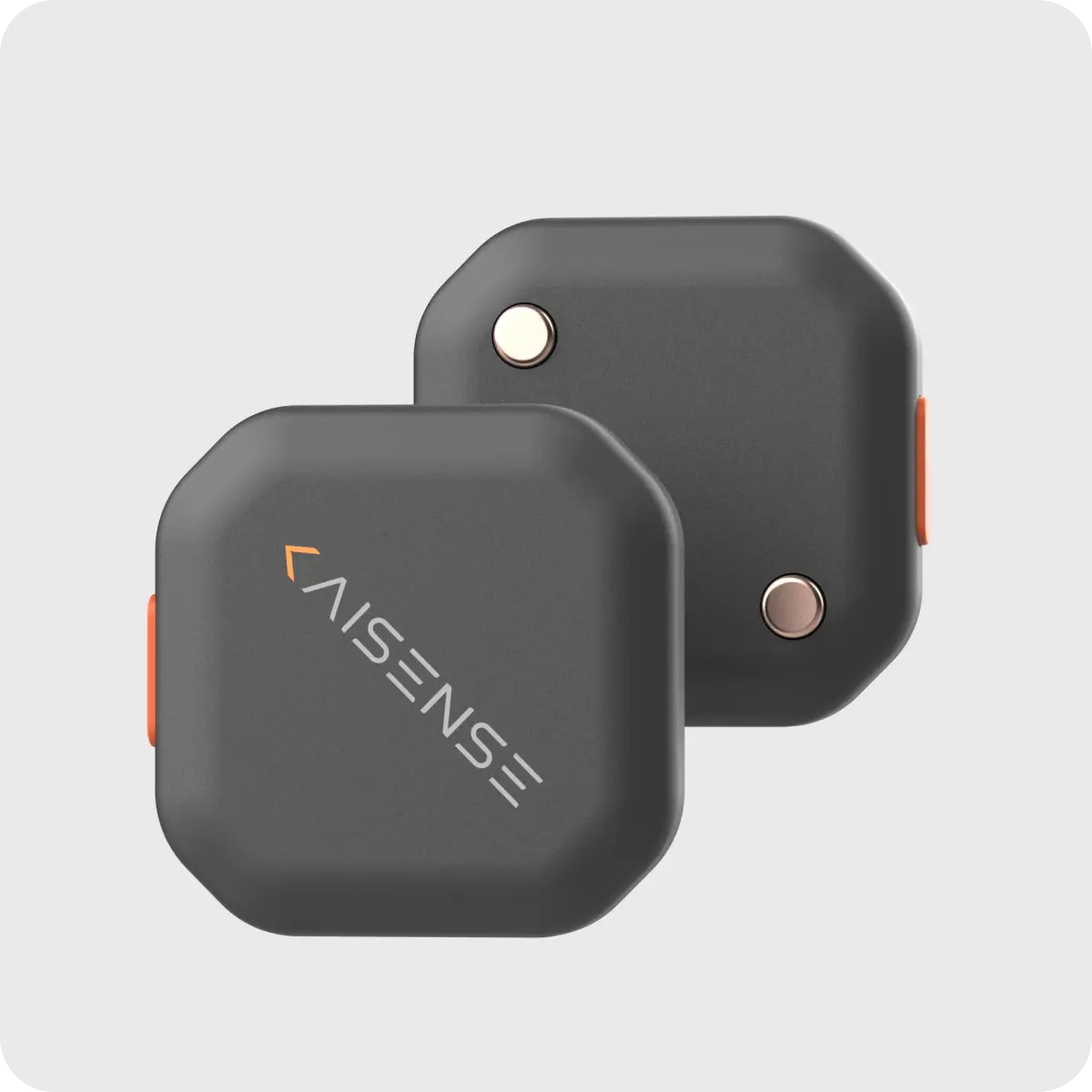

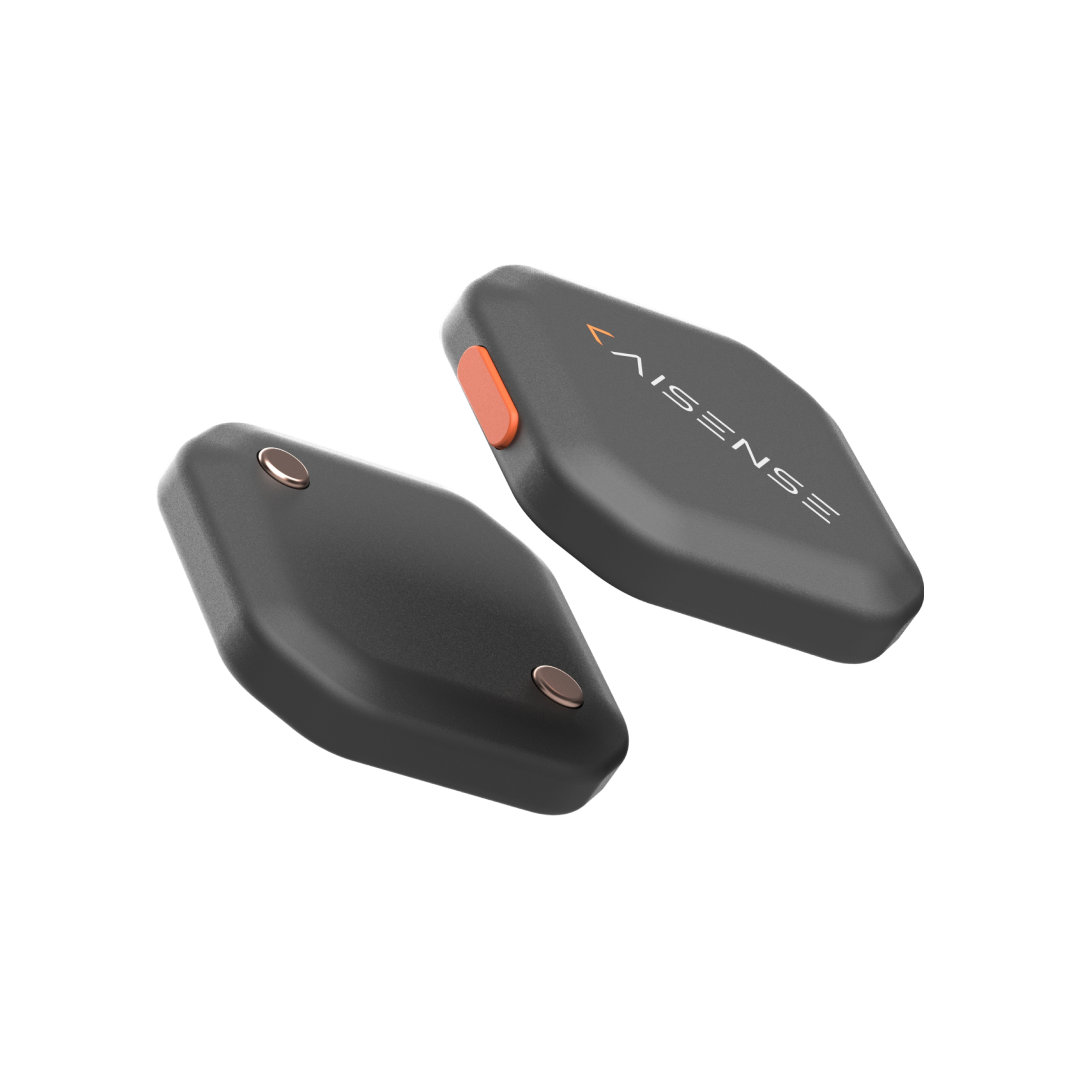

Compact sensors. Acceleration, rotation, impact. Multi-point, Bluetooth, all-day battery.

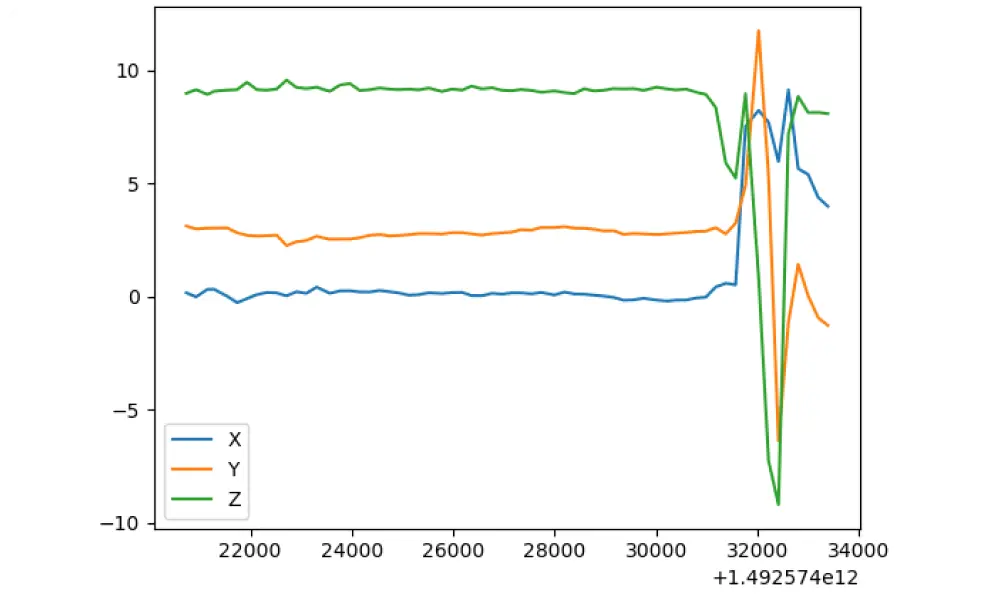

High-frequency IMU data. Full control over sampling rates and formats.
On-device models identify movement types. Train custom classifiers.
Body-mounted sensor array. Sub-millisecond alignment across all points.

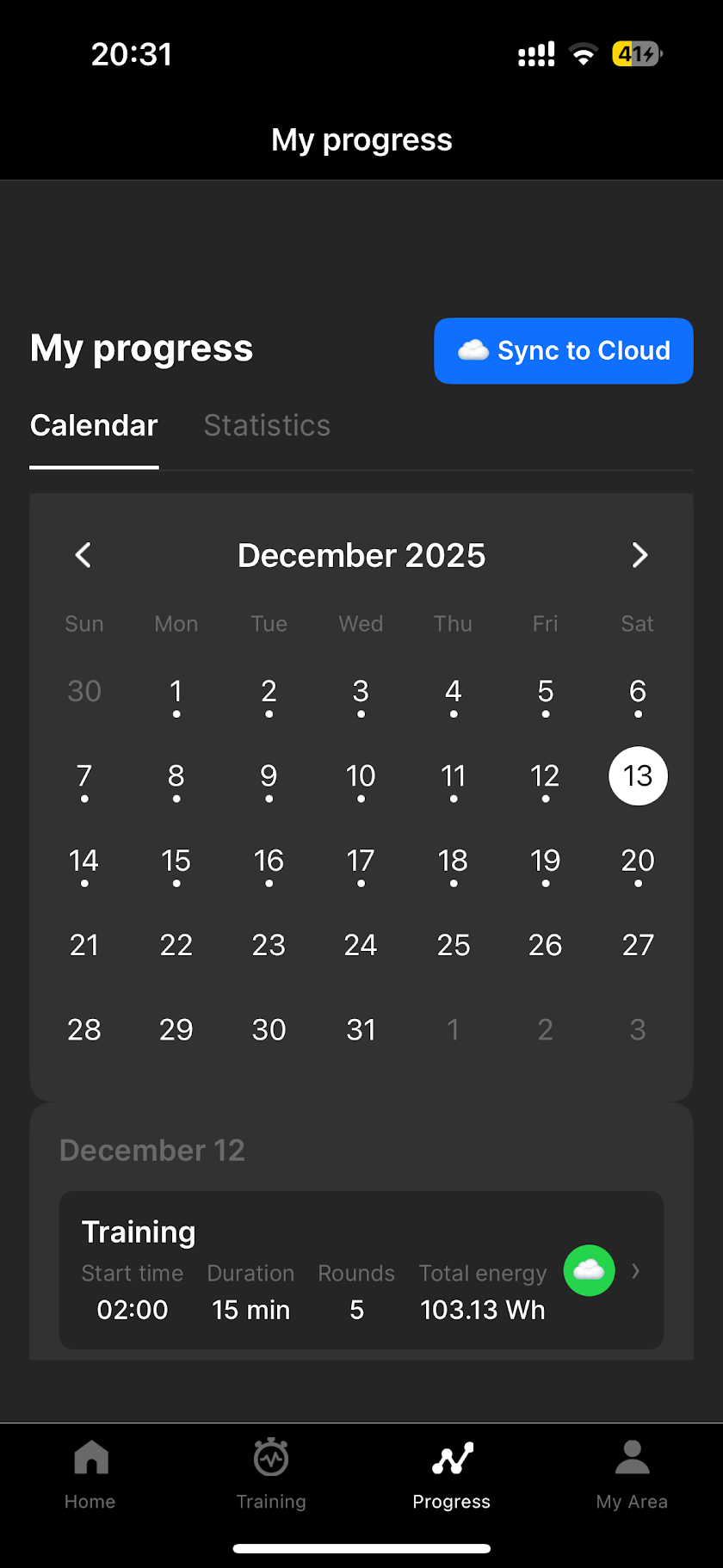

Session storage, batch processing, trend analysis. API access to everything.

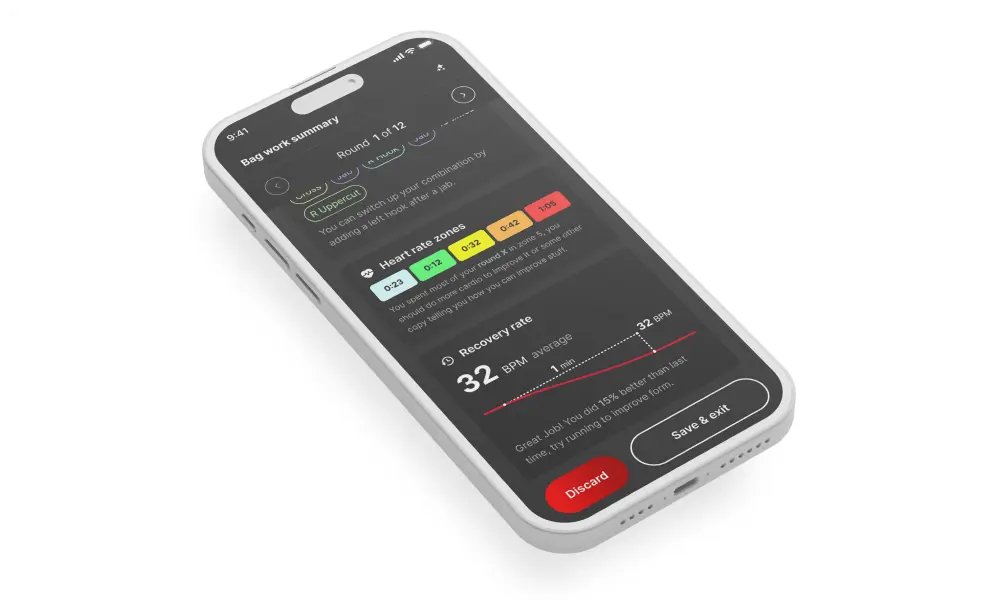

iOS + Android SDKs. REST APIs. Sample apps. Full documentation.
Join the developer preview.
